| 漁檢6缸主機 | |||
| 項目Items | 單位Unit | ||
| 系列Series | 6320系列 | ||
| 型號Model | 6320ZCd-6 | ||
| 功率Power | kW/Ps | 1545/2100 | |
| 轉速Speed | rpm | 525 | |
| 缸徑Bore | mm | 320 | |
| 沖程Stroke | mm | 440 | |
| 活塞平均速度 Mean piston speed | m/s | 7.7 | |
| 平均有效壓力 BMEP | MPa | 1.662 | |
| 燃油(氣)消耗率Fuel consumption | 100%MCR | g/kWh | 194 |
| 85%MCR | 192 | ||
| 潤滑油消耗率Lube oil consumption | g/kWh | 1.2 | |

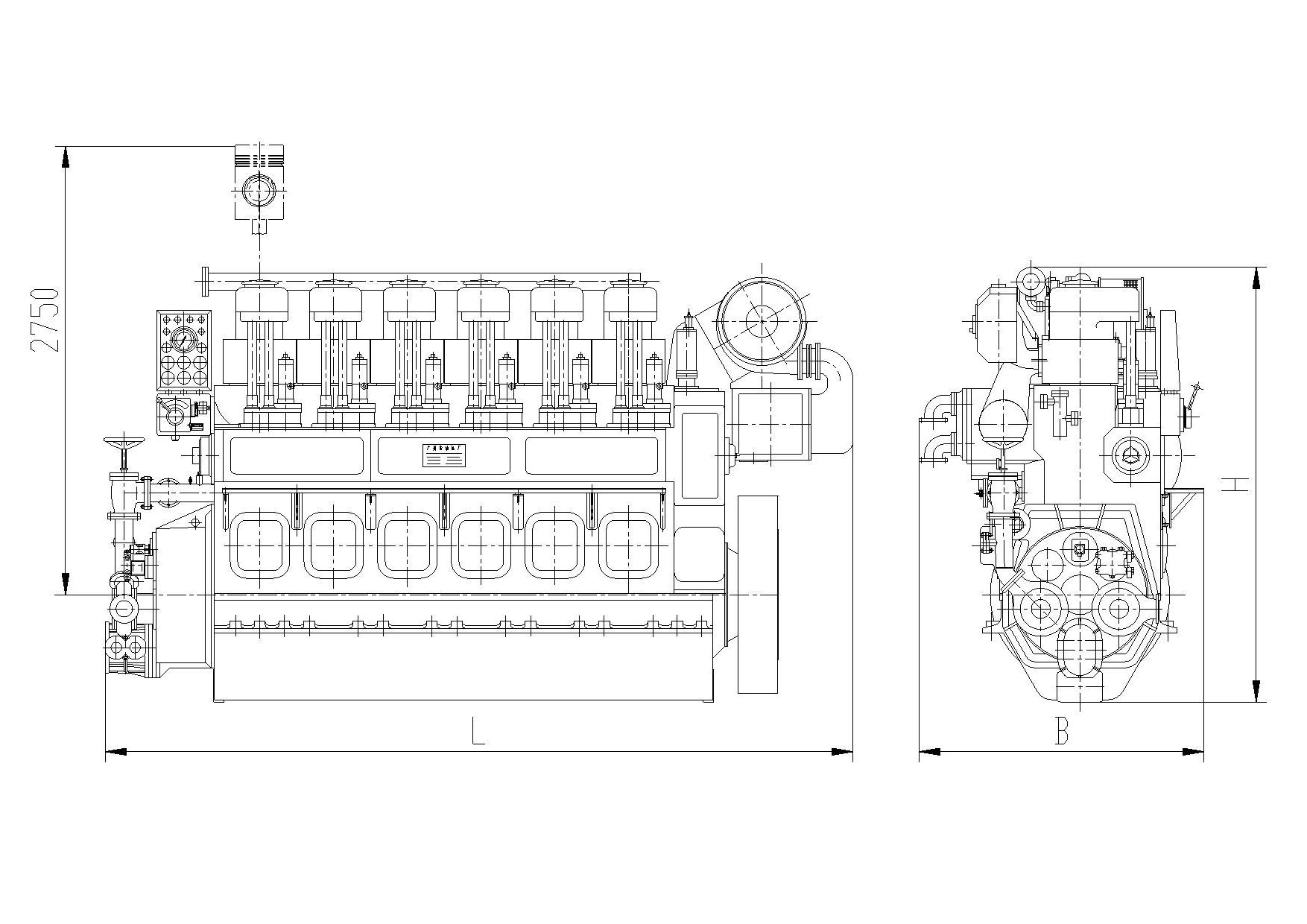

| 外形尺寸 Outline dimension （長×寬×高）(L×B×H) | mm | 4934×1818×3239 | |
| 重量 Weight | kg | 23000 | |
| 雙主機安裝最小中心距離 | mm | 2800 | |
| 證書 | ZY | ||
| 燃料類型Fuel type | 180cSt/50℃ HFO、MDO、MGO | ||
| 說明Explantions： | |||
| 1、各型號發動機的供貨范圍，按相應技術文件執行。 | |||
| The delivery scope for each model engines shall be performed as per the corresponding technical files. | |||
| 2、所有機型均可滿足IMO TireⅡ的要求。 | |||
| All the model engines can meet IMO Tire Ⅱ requirements. | |||
